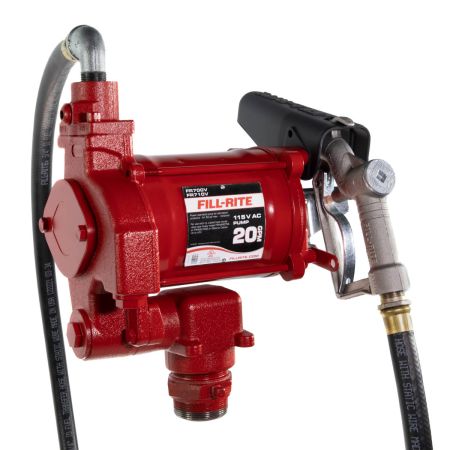

FILL-RITE® Fuel Transfer Pump, 115V / 20GPM, FR700V

This rugged, positive displacement, Heavy Duty pump is UL listed. Explosion proof UL listed 1/3 HP motor (115 VAC-60Hz) with sealed bearings, Heavy Duty switch, thermal overload protection and junction box. Carbon vanes and ceramic/carbon seals reduce wear and repair expense. Integral check valve with pressure relief on outlet side reduces pressure drop and improves vertical lift. Easy removable strainer, automatic bypass valve, 2 IN. threaded bung for tank openings.

FEATURES

• Flow Rate: Up to 18 GPM
• Voltage: 115V AC
• Inlet: 1-1/4"
• Outlet: 3/4"
• Bung Mount: 2" NPT
• Housing Material: Cast iron
• Horsepower: 1/3
• Hz: 60
• Amps: 5.5
• Duty Cycle: 30 mins
• Certification: UL/cUL
